Geometry of Lines and Polygons

def compute_line_segment_intersection(ls_a: np.ndarray, ls_b: np.ndarray) -> Optional[np.ndarray]:
    """Compute the intersection of two line segments.

    Args:
        ls_a: array of shape (2,2) representing two v-stacked points
        ls_b: array of shape (2,2) representing two v-stacked points

    Returns:
        p_i: intersection point of two line segments (possibly none if lines are parallel)
    """
    a0, a1 = ls_a
    b0, b1 = ls_b

    def cart_to_homogeneous(p: np.ndarray) -> np.ndarray:
        """ """
        return np.array([p[0], p[1], 1.0])

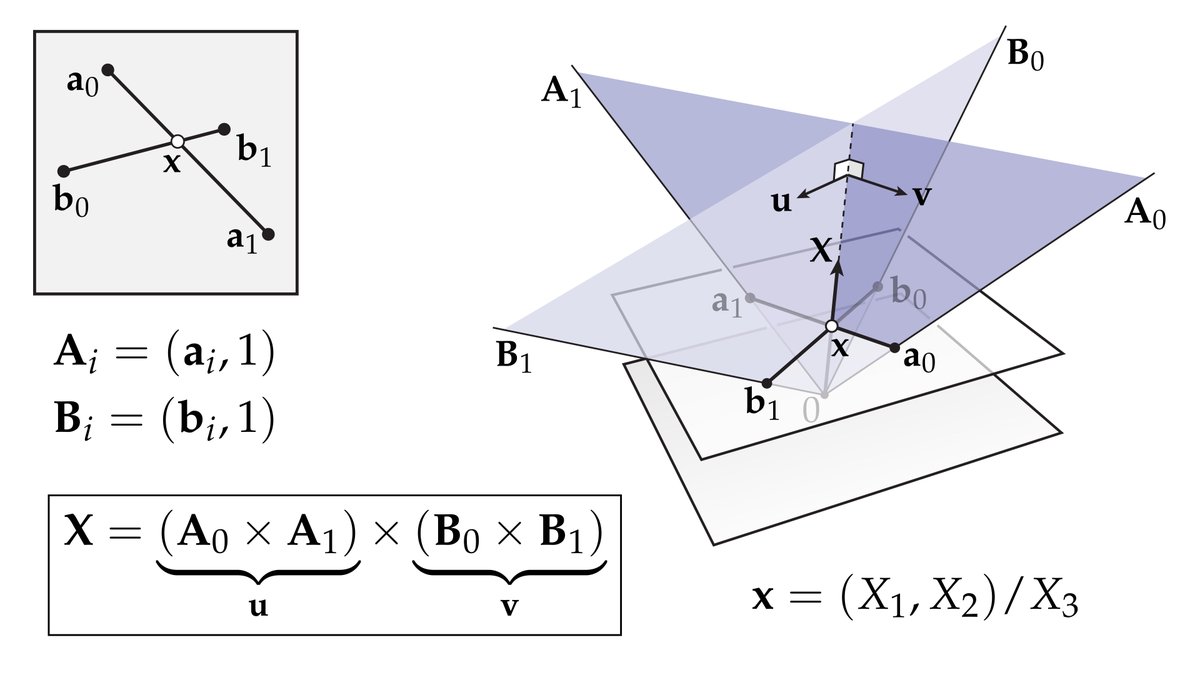

    # compute as homogeneous
    u = np.cross(cart_to_homogeneous(a0), cart_to_homogeneous(a1))
    v = np.cross(cart_to_homogeneous(b0), cart_to_homogeneous(b1))

    x = np.cross(u, v)

    if np.isclose(x[2], 0.0):
        # lines are parallel, so no possible intersection!
        return None

    p_i = x[:2] / x[2]
    return p_i

def test_compute_line_segment_intersection() -> None:
    """ """
    ls_a = np.array([[-4,-2],[1,3]])
    ls_b = np.array([[-3,1],[-1,-1]])

    p_intersect = compute_line_segment_intersection(ls_a, ls_b)
    expected_p_intersect = np.array([-2., -0.])
    assert np.allclose(p_intersect, expected_p_intersect)

def polygon_is_ccw(poly: PolygonType) -> bool:
    """Check if winding order of polygon's vertices is counter-clockwise."""
    edges = get_poly_line_segments(np.array(poly))
    edge_sum = 0
    for i in range(len(edges)-1):
        p1, p2 = edges[i]
        x1, y1 = p1
        x2, y2 = p2

        edge_sum += (x2 - x1 ) * (y2 + y1)

    return edge_sum < 0

def test_polygon_is_ccw() -> None:
    """For simple shapes, ensure that a winding order check is accurate."""
    poly1 = np.array(
        [
            [5,0],
            [6,4],
            [4,5],
            [1,5],
            [1,0]
        ]
    )
    is_ccw = polygon_is_ccw(poly1)
    assert is_ccw

    # below is counter-clockwise
    poly2 = np.array(
        [
            [2,0],
            [0,2],
            [-2,0],
            [0,-2]
        ])
    is_ccw = polygon_is_ccw(poly2)
    assert is_ccw

    # below is clockwise
    poly3 = poly1[::-1]
    is_ccw = polygon_is_ccw(poly3)
    assert not is_ccw

def point_inside_halfspace(Q: np.ndarray, ls: np.ndarray) -> bool:
    """Check which side of a line segment a point is found on.

    Args:
        Q: array of shape (2,) representing the query point
        ls: array of shape (2,2) representing line_segment (v-stacked points). Assumes CCW order.

    Returns:
        whether point inside (or directly on) the halfspace defined by line segment.
    """
    A, B = ls
    # form 2x2 matrix.
    M = np.array([B - A, Q - A])
    return np.linalg.det(M) >= 0

def test_point_inside_halfspace() -> None:
    """ """
    p1 = np.array([0.5, 0.5])
    ls = np.array([[2,0],[0,2]]) # CCW
    is_inside = point_inside_halfspace(p1, ls)
    assert is_inside

    p1 = np.array([2,2])
    is_inside = point_inside_halfspace(p1, ls)
    assert not is_inside

def compute_polygon_area(poly: PolygonType) -> float:
    """Compute polygon area by the Shoelace formula. Polygons cannot be self-intersecting. They must be closed.

    Args:
        poly: input 2d polygon with N vertices.

    Returns:
        area of polygon.
    """
    # append first vertex to the end, to close polygon.
    p = np.array(poly)
    p = np.vstack([p, p[0]])

    x, y = p.T

    # (x0 * y1) - (x1 * y0)
    determinants = x[:-1] * y[1:] - x[1:] * y[:-1]
    return np.absolute(np.sum(determinants)) / 2

def test_compute_polygon_area_triangle() -> None:
    """For a right triangle."""
    # as CCW
    poly = [
        (0,0),
        (2,0),
        (2,2)
    ]
    area = compute_polygon_area(poly)
    assert np.isclose(area, 2.0)


def test_compute_polygon_area_square() -> None:
    """for square
    """
    poly = [
        (1,1),
        (-1,1),
        (-1,-1),
        (1,-1)
    ]
    area = compute_polygon_area(poly)
    assert np.isclose(area, 4.0)


def test_compute_polygon_area_rhombus() -> None:
    """for rhombus w/ CW verts (not CCW)
    """
    poly = [
        (0,6),
        (2,4),
        (0,2),
        (-2,4)
    ]
    area = compute_polygon_area(poly)
    assert np.isclose(area, 8.0)


def test_compute_polygon_area_arbitrary() -> None:
    """for arbitrary closed polygon w/ 5 verts.
    """
    poly = [
        (0,-2),
        (2,0),
        (2,2),
        (0,2),
        (-2,0)
    ]
    area = compute_polygon_area(poly)
    assert np.isclose(area, 10.0)

def compute_polygon_intersection(subject_polygon: PolygonType, clip_polygon: PolygonType) -> PolygonType:
    """Compute the polygon that represents the intersection of two convex polygons in a unit circle (S-H).

    Args:
        subject_polygon: input reference polygon with S vertices. Assumes CCW winding order.
        clip_polygon: polygon to use for clipping, with C vertices. Assumes CCW winding order.

    Returns:
        output_polygon: list representing vertices of intersection of two input polygons.
            If there is no intersection, this will be an empty list.
    """
    clip_polygon = np.array(clip_polygon)
    output_polygon = subject_polygon

    clip_poly_segments = get_poly_line_segments(clip_polygon)
    for clip_edge in clip_poly_segments:

        input_polygon = np.array(output_polygon)
        output_polygon = []
        input_poly_segments = get_poly_line_segments(input_polygon)
        for i, input_edge in enumerate(input_poly_segments):
            # coming from subject.
            prev_p_s, curr_p_s = input_edge

            # find intersection point
            p_i = compute_line_segment_intersection(ls_a=np.array([prev_p_s, curr_p_s]), ls_b=clip_edge)

            # There are 3 possible cases.
            if point_inside_halfspace(curr_p_s, clip_edge):
                if not point_inside_halfspace(prev_p_s, clip_edge):
                    # entered from outside of clipping region, so we'll use the intersection point as new start point.
                    output_polygon.append(p_i)
                output_polygon.append(curr_p_s)

            # 2nd case: moving outside of the clipping region as we traverse, record intersection as new end point.
            elif point_inside_halfspace(prev_p_s, clip_edge):
                output_polygon.append(p_i)

            # 3rd case: both points outside of clipping region, so not added to output whatsoever.

    return np.array(output_polygon).tolist()

def test_compute_polygon_intersection_no_intersect() -> None:
    """Corresponds to Case 6: polygons do not intersect"""
    poly1 = [
        (-0.7071067811865476, 0.7071067811865476),
        (-1, 0),
        (-0.7071067811865476, -0.7071067811865476),
    ]
    poly2 = [
        (0.7071067811865476, 0.7071067811865476),
        (1, 0),
        (0.7071067811865476, -0.7071067811865476),
    ]
    intersection_polygon = compute_polygon_intersection(subject_polygon=poly1, clip_polygon=poly2)
    assert len(intersection_polygon) == 0


def test_compute_polygon_intersection() -> None:
    """
    Two simple rectangles, with CCW vertex order.
    """
    # rectangle 1
    # fmt: off
    rect1 = np.array(
        [
            [-1,-2],
            [1,-2],
            [1,2],
            [-1,2]
        ])

    # rectangle 2
    rect2 = np.array(
        [
            [-2,1],
            [-2,-1],
            [2,-1],
            [2,1]
        ])
    # fmt: on
    intersection_polygon = compute_polygon_intersection(subject_polygon=rect1, clip_polygon=rect2)

    expected_intersection_polygon = [[-1.0, 1.0], [-1.0, -1.0], [1.0, -1.0], [1.0, 1.0]]
    assert intersection_polygon == expected_intersection_polygon


def test_compute_polygon_intersection_2() -> None:
    """A "W" clipped to a 5-sided shape.
    (see https://en.wikipedia.org/wiki/File:Sutherland-Hodgman_clipping_sample.svg)
    """
    subject_polygon = np.array(
        [
            [47,-46],
            [151,-353],
            [208,-354],
            [238,-254],
            [266,-355],
            [324,-355],
            [431,-46],
            [370,-45],
            [297,-297],
            [268,-195],
            [210,-194],
            [179,-294],
            [105,-50]
        ])

    clip_polygon = np.array(
        [
            [33,-193],
            [225,-355],
            [457,-192],
            [254,-32],
            [92,-75]
        ])
    # draw_polygon(subject_polygon, color="g")
    # draw_polygon(clip_polygon, color="r")
    intersection_polygon = compute_polygon_intersection(subject_polygon, clip_polygon)
    # draw_polygon(intersection_polygon, color='k')
    #plt.show()
    assert len(intersection_polygon) == 14

def compute_polygon_union_area(poly1: PolygonType, poly2: PolygonType) -> PolygonType:
    """

    union(1,2) = area(1) + area(2) - intersection(1,2)
    """
    intersection_polygon = compute_polygon_intersection(poly1, poly2)
    area_intersection = compute_polygon_area(intersection_polygon)
    area_union = compute_polygon_area(poly1) + compute_polygon_area(poly2) - area_intersection
    return area_union

def test_compute_polygon_union_area() -> None:
    """For simple case w/ 2 rectangles, with CCW vertex order.
    """
    # rectangle 1
    # fmt: off
    rect1 = np.array(
        [
            [-1,-2],
            [1,-2],
            [1,2],
            [-1,2]
        ])

    # rectangle 2
    rect2 = np.array(
        [
            [-2,1],
            [-2,-1],
            [2,-1],
            [2,1]
        ])
    # fmt: on
    area_union = compute_polygon_union_area(poly1=rect1, poly2=rect2)
    assert np.isclose(area_union, 12)


def test_compute_polygon_union_area_triangles() -> None:
    """ """
    # tri 1 is on top
    tri1 = np.array(
        [
            [-2,2],
            [1,-1],
            [4,2]
        ])

    # tri 2 is below
    tri2 = np.array(
        [
            [-2,-2],
            [4,-2],
            [1,1]
        ])

    area_union = compute_polygon_union_area(poly1=tri1, poly2=tri2)
    assert np.isclose(area_union, 16)

import time
from typing import List, Optional, Tuple

import matplotlib.pyplot as plt
import numpy as np
import pytest

# list of 2d vertices
PolygonType = List[Tuple[float,float]]

EPSILON = 1e-10

def verify_polygon_dimension(poly: PolygonType, dim: int = 2) -> bool:
    """Check whether all vertices of a polygon satisfy desired dimensionality.

    Args:
        poly: input 2d polygon with N vertices.
        dim: desired dimension of polygon vertices.

    Returns:
        whether all vertices of input polygon satisfy desired dimension.
    """
    # alternatively could cast to a Numpy array, and verify it's shape
    # (casted array shouldn't have "object" type if all vertices have the same dimension)
    return all([len(v) == dim for v in poly])


def test_verify_polygon_dimension_valid() -> None:
    """Ensure that a 2d polygon with all 2d verts is treated appropriately."""
    poly = [
        (-0.1736481776669303, 0.984807753012208),
        (-1, 0),
        (0, -1),
    ]
    assert verify_polygon_dimension(poly=poly, dim=2)


def test_verify_polygon_dimension_invalid() -> None:
    """Ensure we catch malformed input, e.g. a polygon with one vertex that is 3d, while the other verts are 2d."""
    poly = [
        (-0.1736481776669303, 0.984807753012208),
        (-1, 0, 0),
        (0, -1),
    ]
    assert not verify_polygon_dimension(poly=poly, dim=2)


def verts_lie_on_unit_circle(poly: PolygonType) -> bool:
    """Check whether all vertices of a polygon lie on a unit circle.

    Args:
        poly: input 2d polygon with N vertices.

    Returns:
        whether all vertices of input polygon lie on unit circle.
    """
    dists = np.linalg.norm(np.array(poly), axis=1)
    return np.allclose(dists, 1.0, atol=1e-7)


def test_verts_lie_on_unit_circle_valid() -> None:
    """Verify that polygons with all vertices lying on the unit circle are treated as valid."""
    poly1 = [
        (-0.7071067811865475, 0.7071067811865476),
        (0.30901699437494723, -0.9510565162951536),
        (0.5877852522924729, -0.8090169943749476),
    ]
    assert verts_lie_on_unit_circle(poly=poly1)

    poly2 = [
        (1, 0),
        (0, 1),
        (-1, 0),
        (0, -1),
        (0.7071067811865475, -0.7071067811865477),
    ]
    assert verts_lie_on_unit_circle(poly=poly2)


def test_verts_lie_on_unit_circle_invalid() -> None:
    """Catch invalid polygon, with a single vertex lying off the unit circle."""

    poly = [
        (1, 0),
        (0, 1),
        (-1, 0),
        (0,-2)
    ]
    assert not verts_lie_on_unit_circle(poly=poly)




def convert_to_ccw(poly: PolygonType) -> PolygonType:
    """Convert a polygon with arbitrary winding order, to have CCW winding order.

    https://stackoverflow.com/questions/1165647/how-to-determine-if-a-list-of-polygon-points-are-in-clockwise-order
    """
    if polygon_is_ccw(poly):
        # no changes necessary to get CCW
        return poly

    else:
        # is CW, so reverse order to get CCW
        return poly[::-1]


def iou(poly1: PolygonType, poly2: PolygonType) -> float:
    """Compute the intersection-over-union between two polygons.

    Args:
        poly1: M vertices of first 2d polygon.
        poly2: N vertices of second 2d polygon.

    Returns:
        iou: scalar representing intersection-over-union of two polygons.
    """
    poly1 = convert_to_ccw(poly1)
    poly2 = convert_to_ccw(poly2)

    M = len(poly1)
    N = len(poly2)
    # check for invalid polygons (less than 3 input verts)
    if M < 3 or N < 3:
        raise ValueError("Input polygons must be specified by at least 3 vertices.")

    # check for invalid polygons (not an iterable of 2d vertices)
    if not verify_polygon_dimension(poly1, dim=2) or not verify_polygon_dimension(poly2, dim=2):
        raise ValueError("Input polygons must consist of 2-dimensional vertices.")


    # check for invalid polygons (verify that all vertices lie on unit circle)
    if not verts_lie_on_unit_circle(poly1) or not verts_lie_on_unit_circle(poly2):
        raise ValueError("Input polygons must have all vertices on the unit circle.")

    intersection_polygon = compute_polygon_intersection(poly1, poly2)
    if len(intersection_polygon) == 0:
        iou = 0.0 # there was no intersection
        return iou

    area_intersection = compute_polygon_area(intersection_polygon)
    area_union = compute_polygon_area(poly1) + compute_polygon_area(poly2) - area_intersection

    iou = area_intersection / (area_union + EPSILON)
    return iou


def test_iou_insufficient_num_verts() -> None:
    """If one input polygon has less than 3 vertices, a ValueError should be thrown."""

    poly1 = [
        (1, 0),
        (0, 1),
    ]
    poly2 = [
        (-0.1736481776669303, 0.984807753012208),
        (-1, 0),
        (0, -1),
    ]

    with pytest.raises(ValueError):
        iou(poly1, poly2)





def get_poly_line_segments(poly: np.ndarray) -> List[np.ndarray]:
    """Get line segments that define boundary of N-vertex polygon."""
    N = poly.shape[0]
    return [ poly[ np.array([i, (i+1) % N]) ] for i in range(N) ]




def draw_polygon(polygon: PolygonType, color: str) -> None:
    """Draw a polygon using matplotlib."""
    N = len(polygon)
    poly = np.array(polygon)

    plt.plot(poly[:,0], poly[:, 1], color=color)
    # color vertices as small circles
    plt.scatter(poly[:,0], poly[:, 1], 10, marker='.', color=color)

    # connect last and first vertex
    plt.plot([poly[-1,0],poly[0,0]], [poly[-1,1],poly[0,1]], color=color)


# --------------------------------------------------------


def additional_test_cases() -> None:
    """ """
    cases = []
    # Case 1: a vanilla case (see https://imgur.com/a/dSKXHPF for a diagram)
    poly1 = [
        (-0.7071067811865475, 0.7071067811865476),
        (0.30901699437494723, -0.9510565162951536),
        (0.5877852522924729, -0.8090169943749476),
    ]
    poly2 = [
        (1, 0),
        (0, 1),
        (-1, 0),
        (0, -1),
        (0.7071067811865475, -0.7071067811865477),
    ]
    cases.append((poly1, poly2, "simple case", 0.12421351279682288))
    # Case 2: another simple case
    poly1 = [
        (1, 0),
        (0, 1),
        (-0.7071067811865476, -0.7071067811865476),
    ]
    poly2 = [
        (-0.1736481776669303, 0.984807753012208),
        (-1, 0),
        (0, -1),
    ]
    cases.append((poly1, poly2, "simple case 2", 0.1881047657147776))
    # Case 3: yet another simple case, note the duplicated point
    poly1 = [
        (0, -1),
        (-1, 0),
        (-1, 0),
        (0, 1),
    ]
    poly2 = [
        (0.7071067811865476, 0.7071067811865476),
        (-0.7071067811865476, 0.7071067811865476),
        (-0.7071067811865476, -0.7071067811865476),
        (0.7071067811865476, -0.7071067811865476),
        (0.7071067811865476, -0.7071067811865476),
    ]
    cases.append((poly1, poly2, "simple case 3", 0.38148713966109243))

    # Case 4: shared edge
    poly1 = [
        (-1, 0),
        (-0.7071067811865476, -0.7071067811865476),
        (0.7071067811865476, -0.7071067811865476),
        (1, 0),
    ]
    poly2 = [
        (0, 1),
        (-1, 0),
        (1, 0),
    ]
    cases.append((poly1, poly2, "shared edge", 0.0))

    # Case 5: same polygon
    poly1 = [
        (0, -1),
        (-1, 0),
        (1, 0),
    ]
    poly2 = [
        (0, -1),
        (-1, 0),
        (1, 0),
    ]
    cases.append((poly1, poly2, "same same", 1.0))

    # Case 6: polygons do not intersect
    poly1 = [
        (-0.7071067811865476, 0.7071067811865476),
        (-1, 0),
        (-0.7071067811865476, -0.7071067811865476),
    ]
    poly2 = [
        (0.7071067811865476, 0.7071067811865476),
        (1, 0),
        (0.7071067811865476, -0.7071067811865476),
    ]
    cases.append((poly1, poly2, "no intersection", 0.0))

    t0 = time.time()

    for poly1, poly2, description, expected in cases:
        computed = iou(poly1, poly2)
        print('-'*20)
        print(description)
        print("computed:", computed)
        print("expected:", expected)
        print("PASS" if abs(computed - expected) < 1e-8 else "FAIL")
        assert np.isclose(computed, expected, atol=1e-8)

    # details here don't matter too much, but this shouldn't be seconds
    dt = (time.time() - t0) * 1000
    print("done in %.4fms" % dt)
